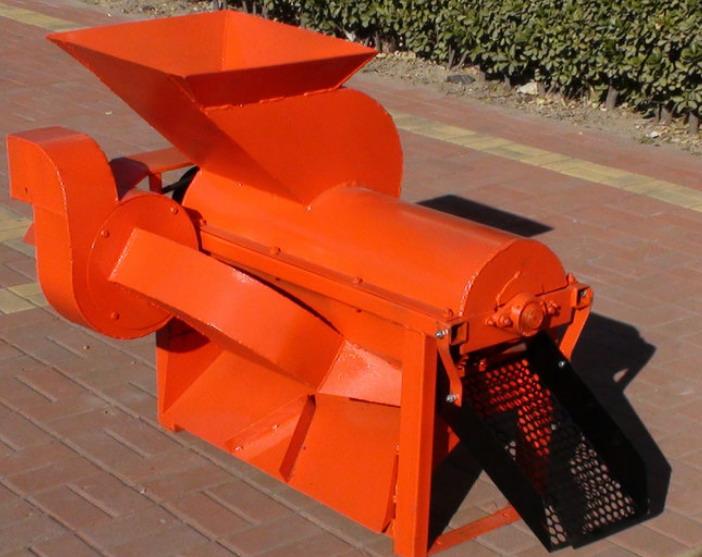

Corn husker thresher machine is used to peel the skin of corn and make the maize removed from the cob only work once.
It is a kind of multifunctional machine. It can peel the skin and remove the corn form the cob. It is high frequency and can be connected with Strap type tractor in the front with two v-blet (B2400).

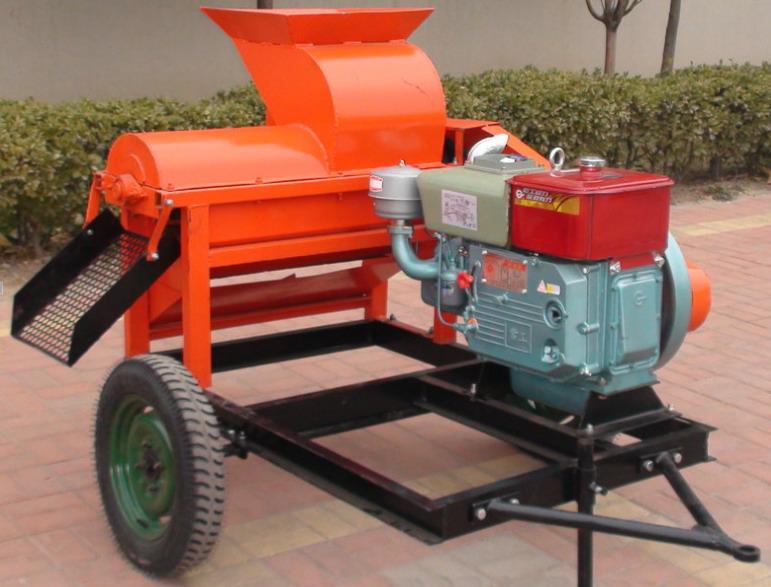

It can used Changgong ZS1100G 15hp diesel engine and add two wheels.So that it can be trailed by tractor.

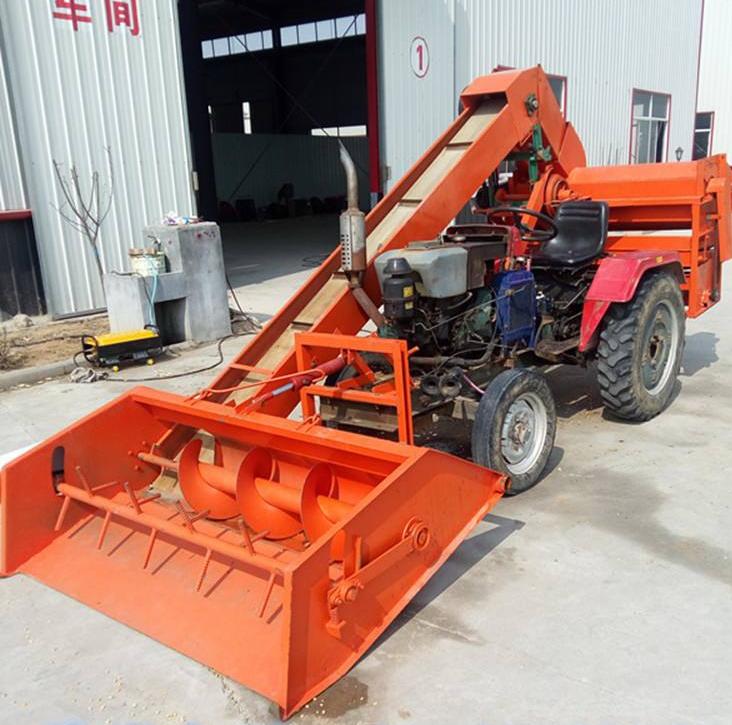

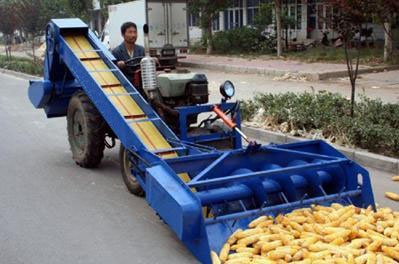

Also we can supply the automatic corn thresher mounted on tractor use .
Model | TYM-850 |
Overall Dimension(mm) | 1100×700×1000 |
Matched Power(hp) | 12-18 |
Rotating Speed of Main Shaft(rpm) | 1200±50 |
Productivity (kg/h) | 3000-4000 |
Threshing Rate(%) | ≥98 |
Breakage Rate(%) | ≤1 |
Roller Diameter(cm) | 30 |
Total Weight without Power（kg） | 115 |
Total Weight with Diesel Power (kg) | 360 |
Loading Quantity for 20GP (sets) | 32 |
Diesel Engine Power(hp) | 15 |
