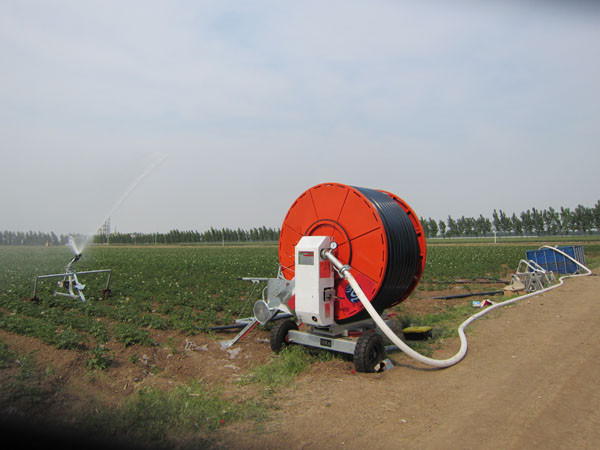

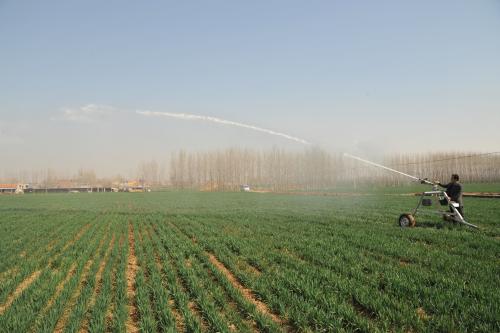

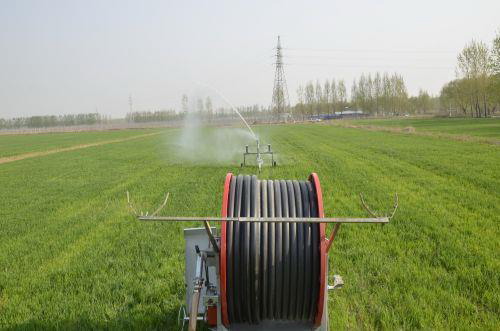

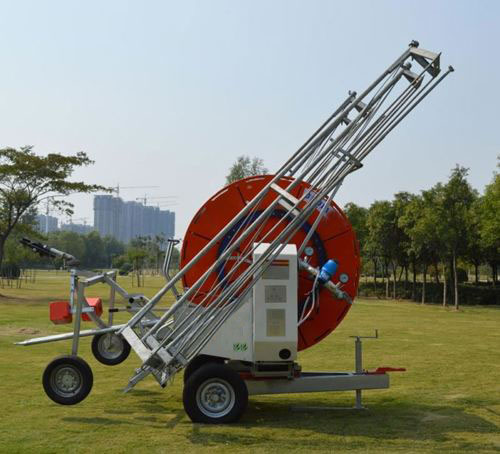

This kind of reel water sprinker is a high efficiency and popular irrigation system which use sprinkler pipe wrapped around the winch, sprayed by a gun, Move the irrigator, repeat the above steps to complete the irrigation of the entire plot.

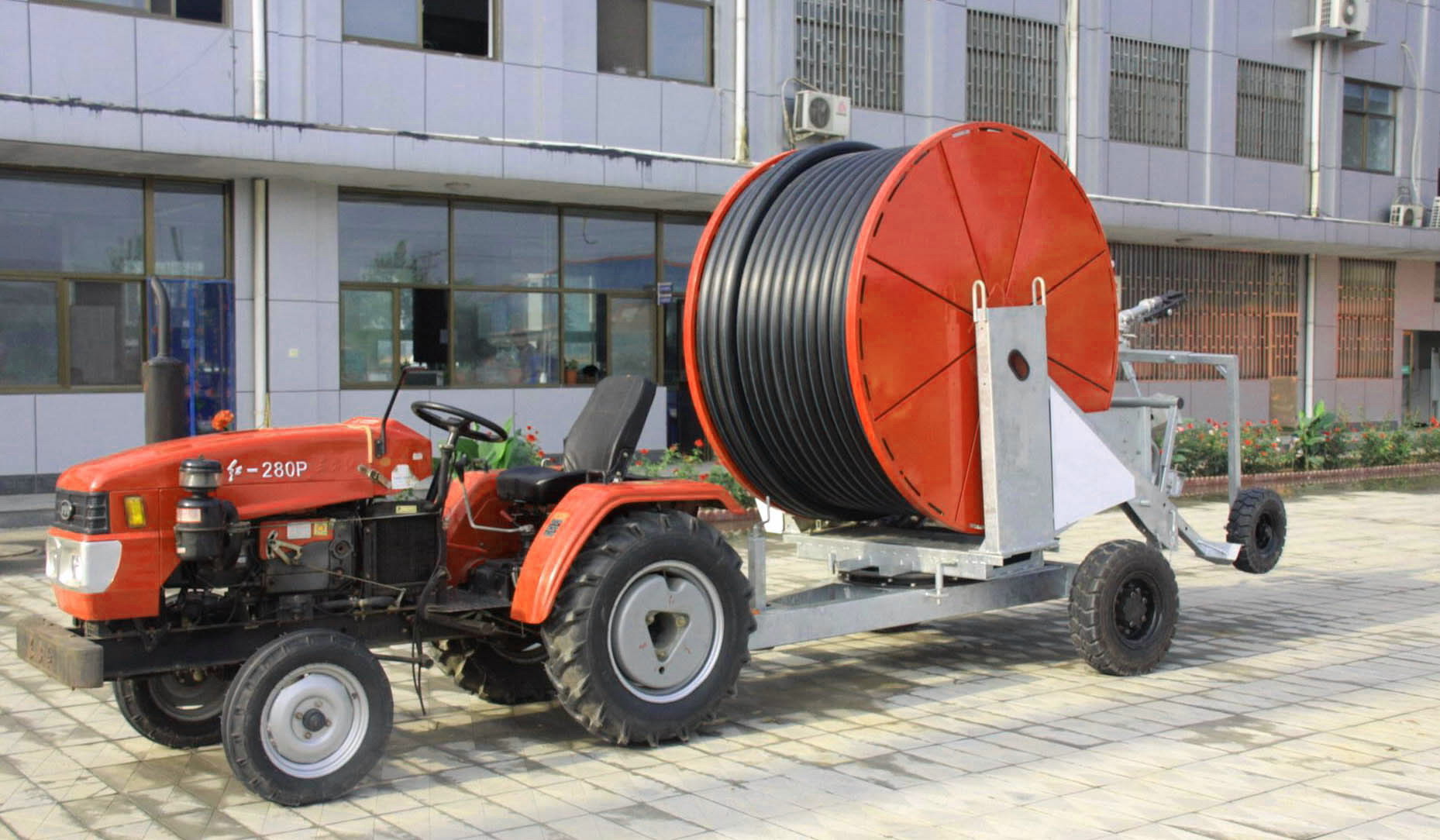

If the field has the electricity power, it can choose diving pump because it is cheaper in cost and if without electricity power, it need to use the diesel engine pump vehicle.
Model | PE Pipe Diameter
(mm) | PE Pipe Length
(m) | Maximum Control Belt Length (m) | Flux
(m3/h) | Irrigation Diameter
(mm) | Connection Pressure
(mpa) |
65-220TX | 65 | 220 | 2×260 | 13-32 | 14-22 | 3.5-10.0 |
65-250TX | 65 | 250 | 2×290 | 13-32 | 14-22 | 3.5-10.0 |
65-300TX | 65 | 300 | 2×340 | 13-32 | 14-22 | 3.5-10.0 |
75-200TX | 75 | 200 | 2×250 | 13-50 | 14-26 | 3.5-10.0 |
75-250TX | 75 | 250 | 2×300 | 13-50 | 14-28 | 3.5-10.0 |
75-270TX | 75 | 270 | 2×315 | 13-45 | 14-28 | 3.5-10.0 |
75-300TX | 75 | 300 | 2×345 | 13-38 | 14-26 | 3.5-10.0 |
75-320TX | 75 | 320 | 2×365 | 13-38 | 14-24 | 3.5-10.0 |
75-350TX | 75 | 350 | 2×390 | 13-38 | 14-22 | 3.5-10.0 |
75-400TX | 75 | 400 | 2×435 | 13-30 | 14-20 | 3.5-10.0 |
90-230TX | 90 | 230 | 2×280 | 17-65 | 16-30 | 3.5-10.0 |
90-250TX | 90 | 250 | 2×300 | 17-65 | 16-30 | 3.5-10.0 |
90-280TX | 90 | 280 | 2×320 | 17-65 | 16-30 | 3.5-10.0 |
90-300TX | 90 | 300 | 2×350 | 17-65 | 16-30 | 3.5-10.0 |
