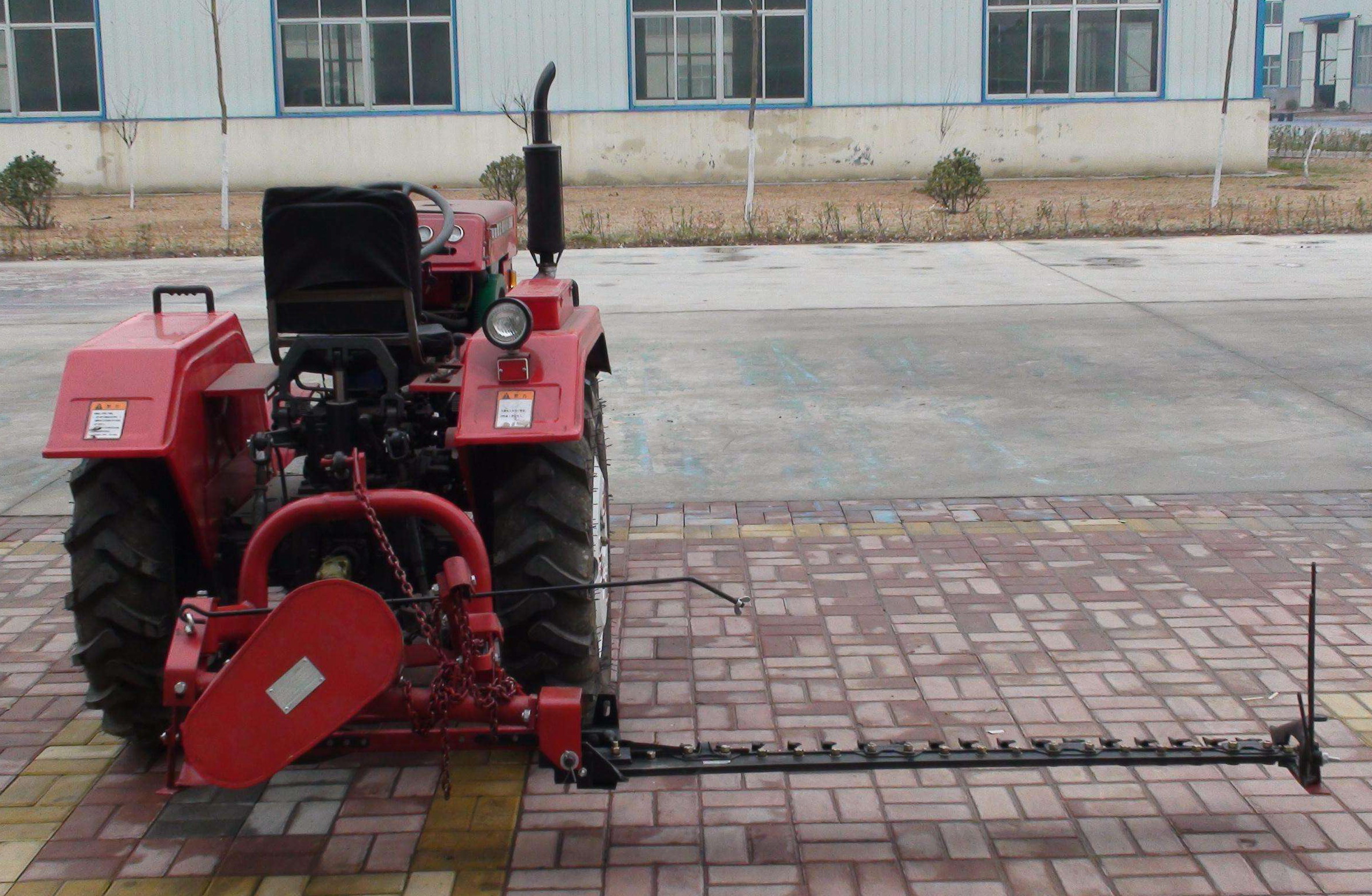

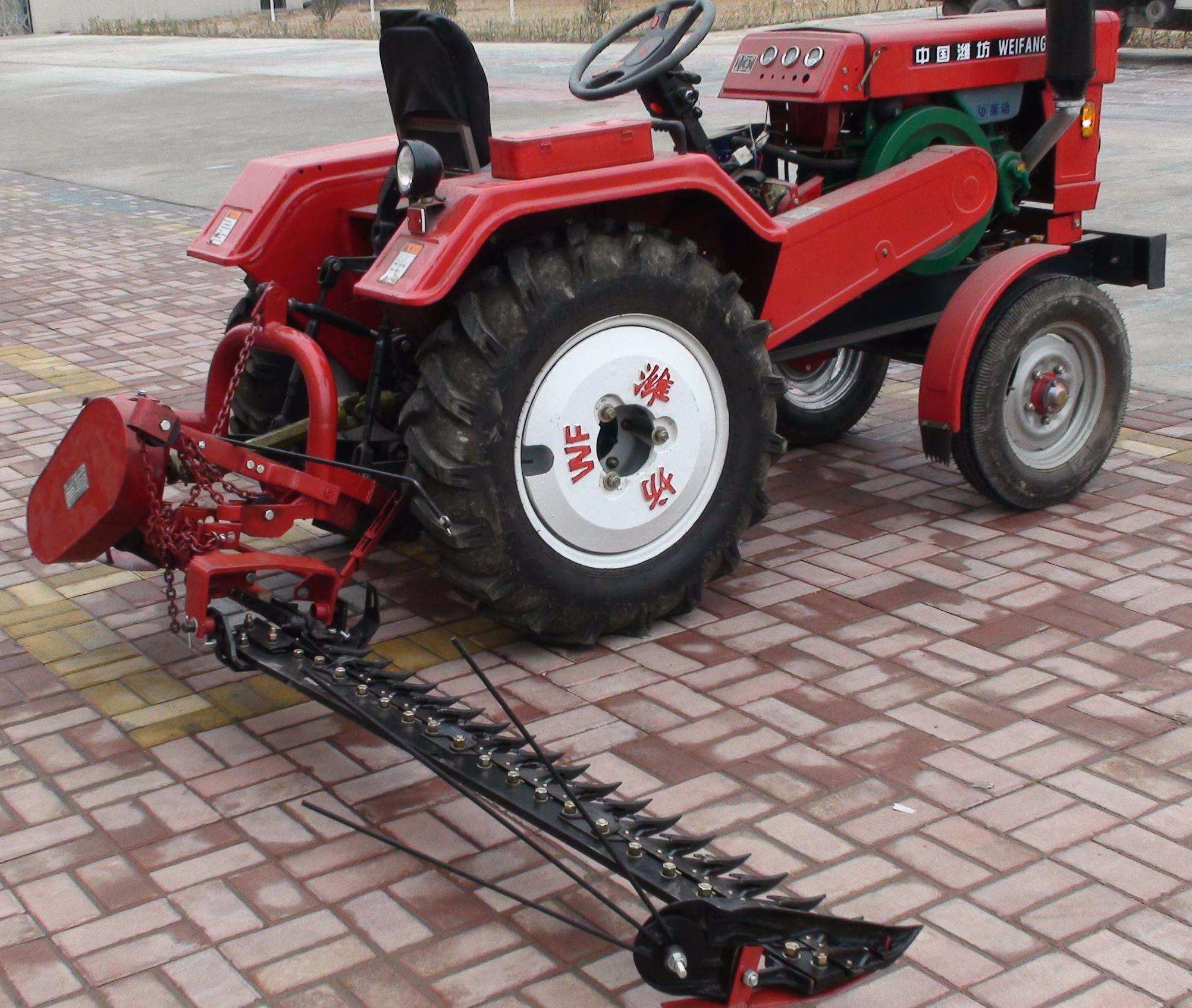

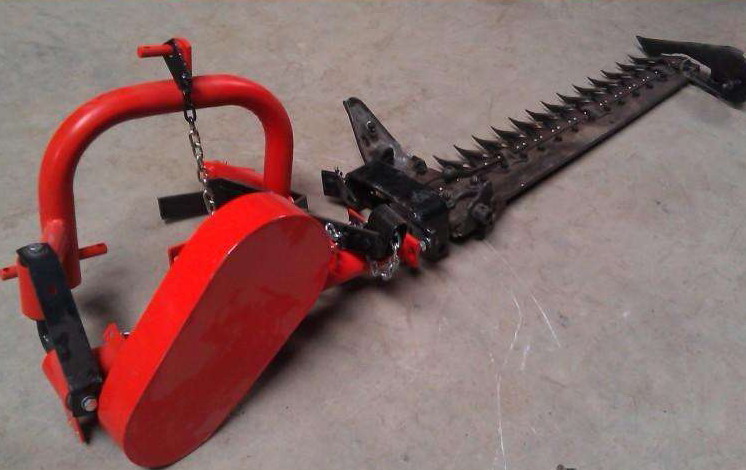

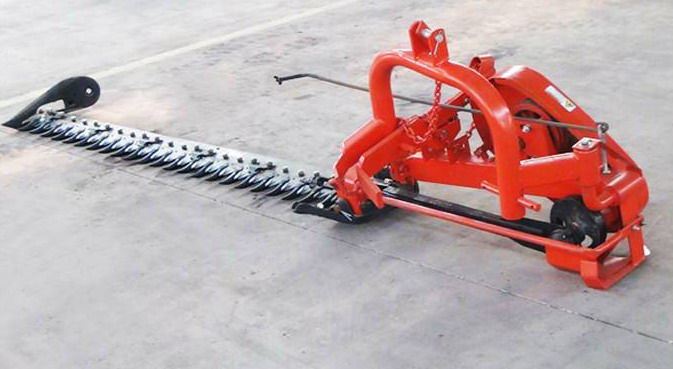

Sickle Bar Mower

Specification

This kind of mower is cheaper relatively and also easy to work.

Model

9G-1.4

9G-1.6

9G-1.8

9G-2.1

Working Width(mm)

1400

1600

1800

2100

Working Depth(mm)

50-80

PTO Rotation Speed(r/min)

540

PTO Shaft Spline Type

6 spline or 8 spline

Total Weight(kg)

120

125

130

135

Matched Power(hp)

12-20

15-20

20-30

20-30

Linkage Type

3-point linkage I type
